Product Description:
A Plate Heat Exchanger Plate is an essential component designed for efficient heat transfer in various industrial applications. This particular product summary focuses on a Plate Heat Exchanger Plate with the following key attributes:
Temperature Range: The Plate Heat Exchanger Plate is engineered to withstand temperatures ranging from -50ºC to +180ºC, although the specific range may vary depending on the media and gasket selection. This versatility makes it suitable for a wide range of heating and cooling processes, offering reliable performance even in extreme temperature conditions.
Plate Pattern: The Plate Heat Exchanger Plate features a herringbone pattern, which is known for its excellent heat transfer efficiency. This design ensures optimal fluid flow and turbulence within the exchanger, maximizing the thermal exchange between the two fluids passing through the plates.
Design Function: With a channel plate design, this Plate Heat Exchanger Plate is structured to facilitate the smooth flow of liquids or gases through the channels formed between the plates. The channel plate configuration enhances heat transfer efficiency by promoting turbulence and minimizing pressure drop, resulting in improved overall performance of the heat exchanger.
Temperature: Capable of operating at temperatures up to 180°C, this Plate Heat Exchanger Plate is engineered to meet the demands of high-temperature applications. Whether used for heating or cooling purposes, this product ensures reliable performance under elevated temperature conditions, making it a versatile solution for various industrial processes.
Product Category: Classified under the Plate Heat Exchanger Plate category, this product is specifically designed to be a critical component within plate heat exchangers. Plate heat exchangers are widely used in industries such as HVAC, chemical processing, power generation, and food processing, among others, due to their efficiency and compact design.
When considering heat exchanger options, the Plate Heat Exchanger Plate stands out as a reliable and versatile choice. Its ability to withstand a wide temperature range, efficient herringbone plate pattern, channel plate design function, and compatibility with temperatures up to 180°C make it a valuable component for various industrial applications.
Whether you are in need of a welded plate heat exchanger, a dimple plate heat exchanger, or a custom plate for a heat exchanger system, this Plate Heat Exchanger Plate offers a dependable solution that ensures optimal heat transfer performance. Its robust construction and versatile design make it a preferred choice for demanding heat exchange processes where efficiency and reliability are paramount.
Features:
- Product Name: Plate Heat Exchanger Plate
- Temperature: Up To 180°C
- Product Category: Plate Heat Exchanger Plate
- Warranty: 1 Year
- Max Working Temperature: 150°C
- Design Function: Channel Plate
Technical Parameters:
| Technical Parameter | Value |
| Material Quality | Food Grade |
| Plate Pattern | Herringbone |
| Design Function | Channel Plate |

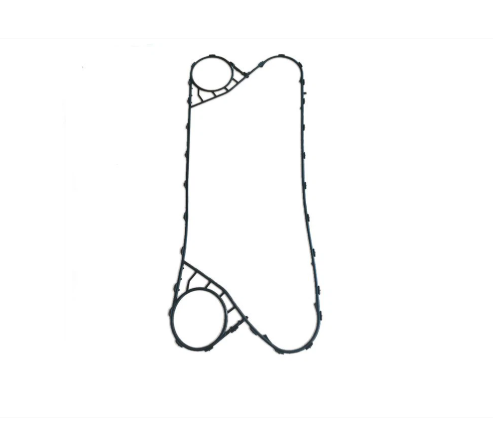

| Product Name | Custom FP205 Detachable Plate Gasket Set for Plate Heat Exchanger Accessories High Efficiency Energy Conservation and Clean |
| Heat Transfer Plate Material | Stainless steel 304, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others |
| Temperature Range | -50ºC ~ +180ºC Varies with the media and gasket selection |
| Product Category | Plate Heat Exchanger Plate |
| Plate Arrangement | Parallel Flow |
| Plate Thickness | 0.4mm ~ 1.0mm |
| Maximum Pressure | Maximum standard pressure 10 bar / 16 bar |
Applications:
Product Application Occasions and Scenarios for Thermowave Plate Heat Exchanger Plate (Model: M15)
Brand Name: Thermowave
Model Number: M15
Certification: FDA Certified, SGS, ISO9001, ISO14001, etc.
Place of Origin: Qingdao, China
Minimum Order Quantity: 10Pcs
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 10000Pcs/Day
Delivery Time: 5-8 Days
Packaging Details: Wooden Case+Pallet
Thickness: 0.5mm, 0.6mm
Max Working Temperature: 150°C
Material Quality: Food Grade
Sectional Shape: Corrugation
Heat Transfer Plate Material: Stainless steel 304, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others
Thermowave Plate Heat Exchanger Plate (Model M15) is suitable for various applications in different industries. The product is commonly used in Shell and Plate Heat Exchangers, Dimple Plate Heat Exchangers, and Pillow Plate Heat Exchangers due to its high-quality material and design.
With FDA certification and meeting ISO standards, this plate heat exchanger plate is ideal for industries requiring strict quality control such as pharmaceutical, food and beverage, and chemical processing. The food-grade material quality ensures safety and hygiene in heat transfer processes.
The versatility of Thermowave Plate Heat Exchanger Plate allows for a wide range of working temperatures, up to 150°C, making it suitable for both high-temperature and low-temperature applications. The various thickness options provide flexibility for different heat transfer requirements.
Manufactured in Qingdao, China, this product offers a quick delivery time of 5-8 days and a high supply ability of 10000Pcs/day, ensuring that the customer's needs are met promptly. The minimum order quantity of 10Pcs allows for flexibility in ordering based on demand.
Whether it is for heating, cooling, or heat recovery applications, the Thermowave Plate Heat Exchanger Plate (Model M15) is a reliable and efficient solution for industries looking to optimize their heat transfer processes.
Support and Services:
The Product Technical Support and Services for the Plate Heat Exchanger Plate include:
- Assistance with installation and setup of the plate heat exchanger plate
- Troubleshooting guidance for any operational issues
- Maintenance advice to ensure optimal performance
- Product training and education for users
- Warranty information and support for any defects or malfunctions
Packing and Shipping:
Product Name: Plate Heat Exchanger Plate
Description: High-quality stainless steel plate suitable for use in plate heat exchangers. Provides efficient heat transfer and durability.
Package Includes: Single plate heat exchanger plate
Shipping: This product will be carefully packaged to ensure safe delivery. Shipping options include standard delivery within 5-7 business days or expedited shipping for faster delivery.
FAQ:
Q: What is the brand name of the Plate Heat Exchanger Plate product?
A: The brand name is Thermowave.
Q: What is the model number of the Plate Heat Exchanger Plate?
A: The model number is M15.
Q: Where is the Plate Heat Exchanger Plate product manufactured?
A: The product is manufactured in Qingdao, China.
Q: What certifications does the Plate Heat Exchanger Plate product have?
A: The product is FDA certified and holds certifications from SGS, ISO9001, ISO14001, etc.
Q: What are the payment terms for purchasing the Plate Heat Exchanger Plate product?
A: Payment terms accepted include L/C, T/T, D/P, and Western Union.
